5V 120A Prismatic Battery Cell Tester Capacity Grading Machine
  • Name

5V 120A Prismatic Battery Cell Tester Capacity Grading Machine

Brand Name: XWELL
Model Number: XW-32
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Battery Type:
Prismatic Battery
Compliance:
CE Certified
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Voltage Accuracy:
±(1‰ Reading +1‰ Full)
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

120A Battery PackTester Machine

,

Lithium Ion Battery PackTester Machine

,

Prismatic Battery PackTester Machine

Product Description

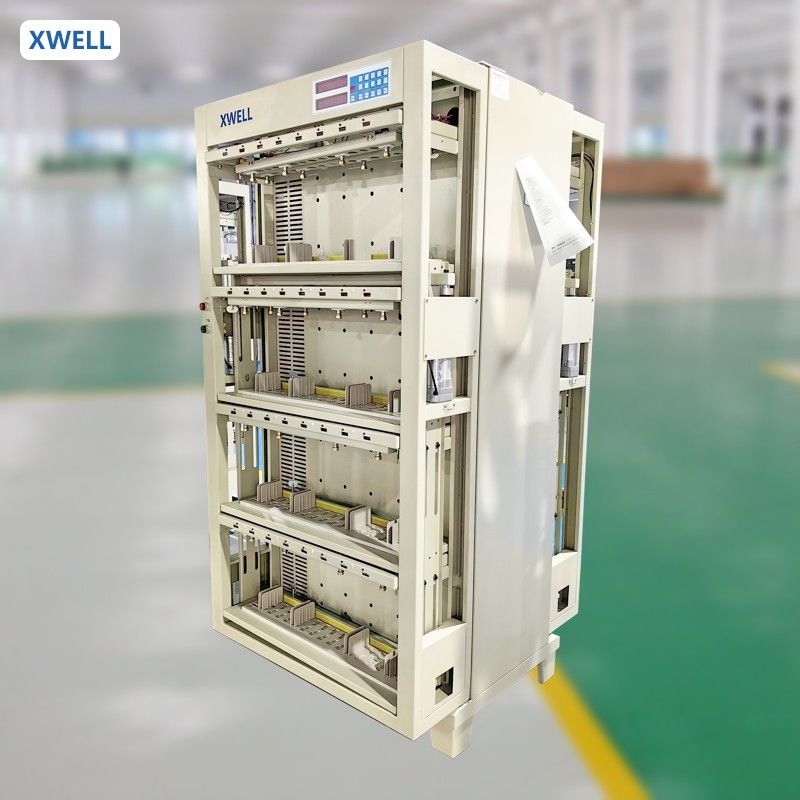

5V 120A Prismatic Battery Cell Tester Capacity Grading Machine



Product Description

This prismatic battery cell tester is used to test the capacity of prismatic batteries through cyclic charging and discharging tests. the whole machine has 64 channels and can test 64 cells simultaneously. The voltage and current accuracy up to 0.5‰ and has energy-saving feedback function, and optional alligator clamps.



Equipment Features

  • Single point independent, independent constant current and constant voltage source, stable without impact. Functions such as start, stop, pause, resume and protection can be realized.
  • The accuracy of the prismatic cell capacity grading machine is 0.05%, the data recording time is 1 second/time, and high stability.
  • The software has powerful functions and friendly man-machine interface.
  • Four-wire test interface to ensure high measurement accuracy. Modular design concept, easy to maintain.
  •





Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams



5V 120A Prismatic Battery Cell Tester Capacity Grading Machine 0



5V 120A Prismatic Battery Cell Tester Capacity Grading Machine 1



XWELL can provide different fixtures for different types of cells



5V 120A Prismatic Battery Cell Tester Capacity Grading Machine 2

5V 120A Prismatic Battery Cell Tester Capacity Grading Machine 3
